For quality control of digital engineering in Die/Sand Casting product, we have inspect our model by such as Draft,Thickness,Product Data Quality (PDQ), part comparison and etc. that most important before sending data to customer for make customer satisfaction
Example Inspect: the 3D modeling data

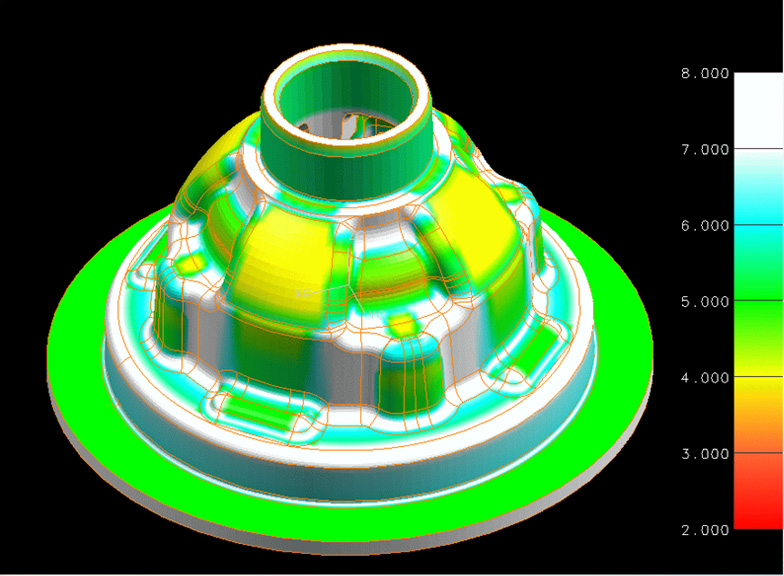

Thickness checking

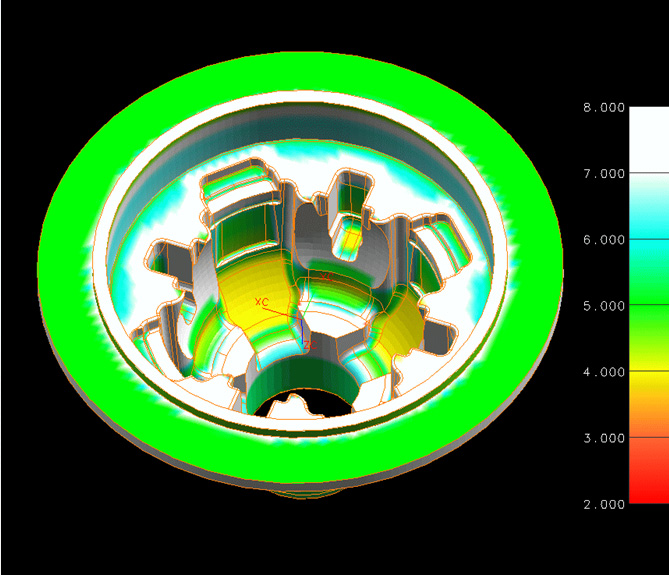

Visual checking
We use visual checking for finding the problem, then must check at each problem by deviation checking

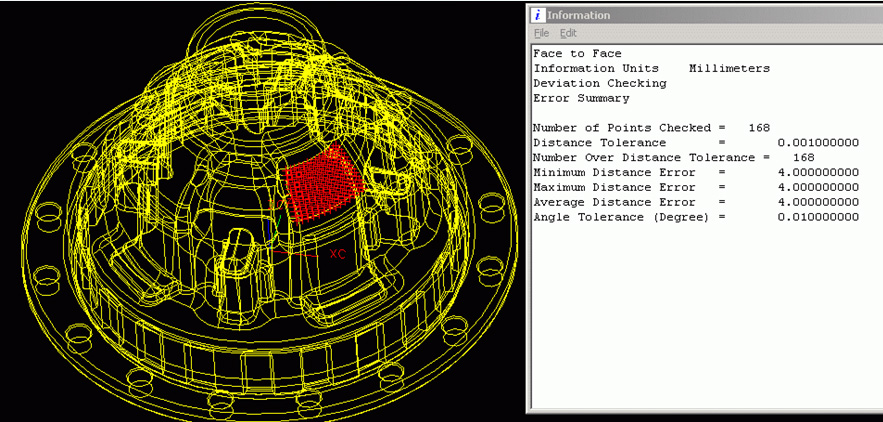

Deviation checking

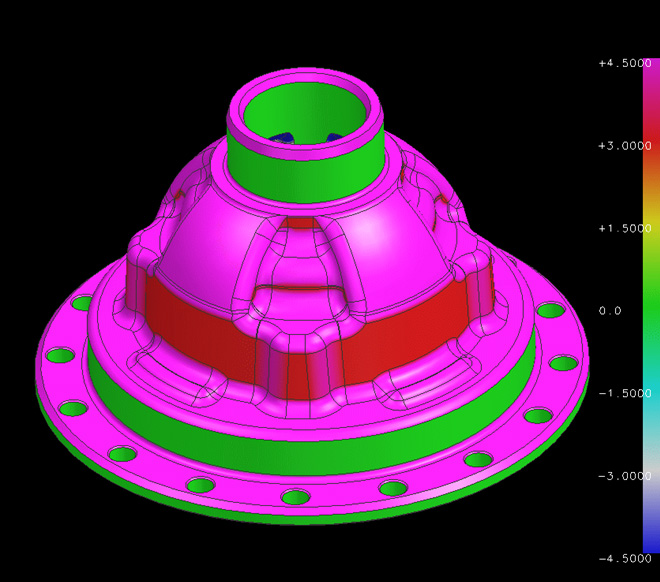

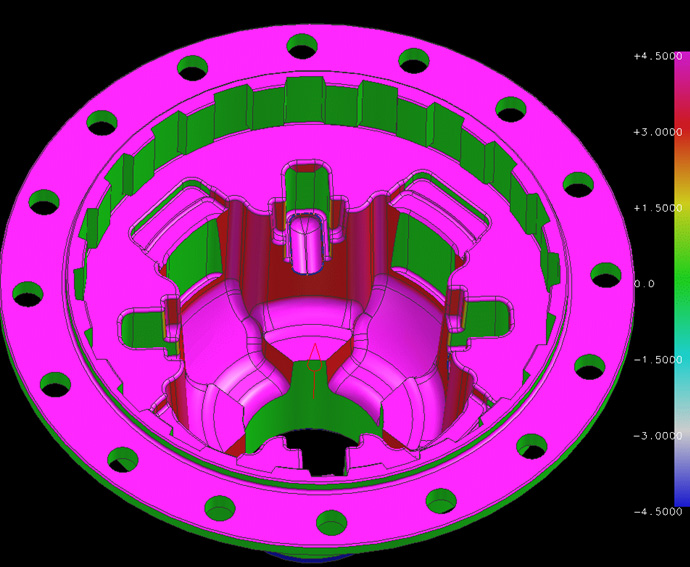

Draft checking
We use visual checking for finding the problem by define range of checking at color bar (on right hand )

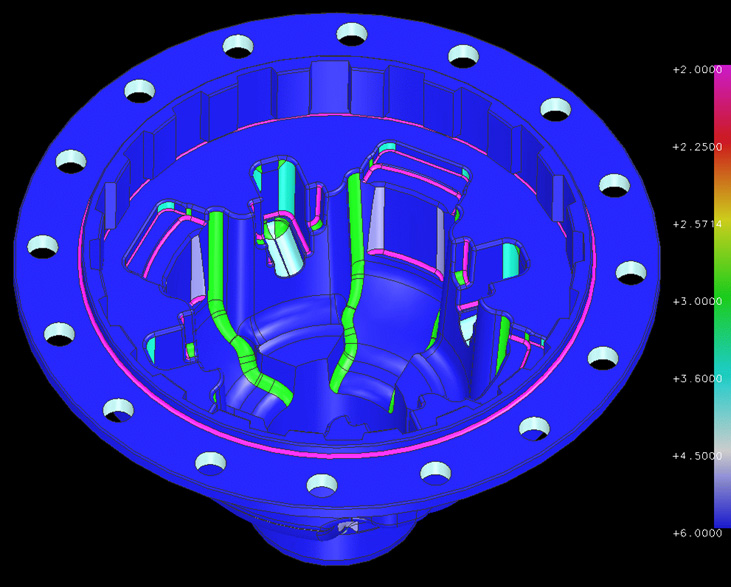

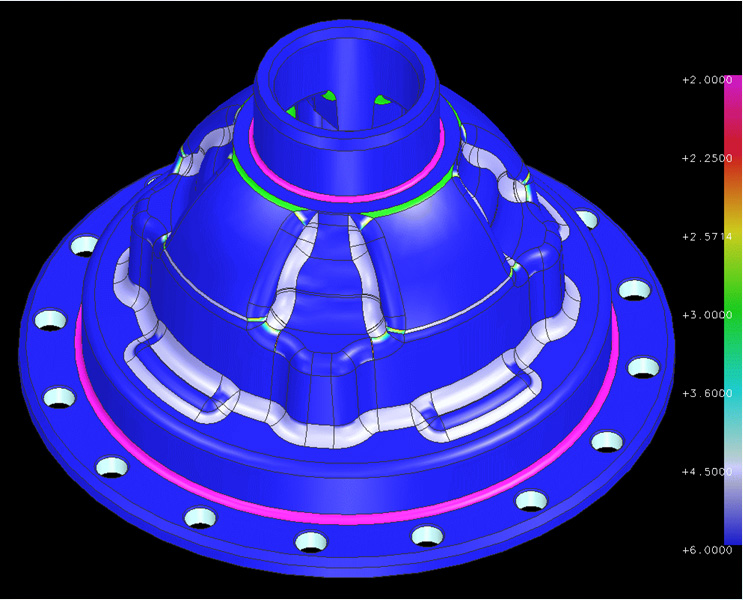

Fillet / R checking
We use visual checking for finding the problem by define range of checking at color bar (on right hand )
Product data quality (PDQ) checking

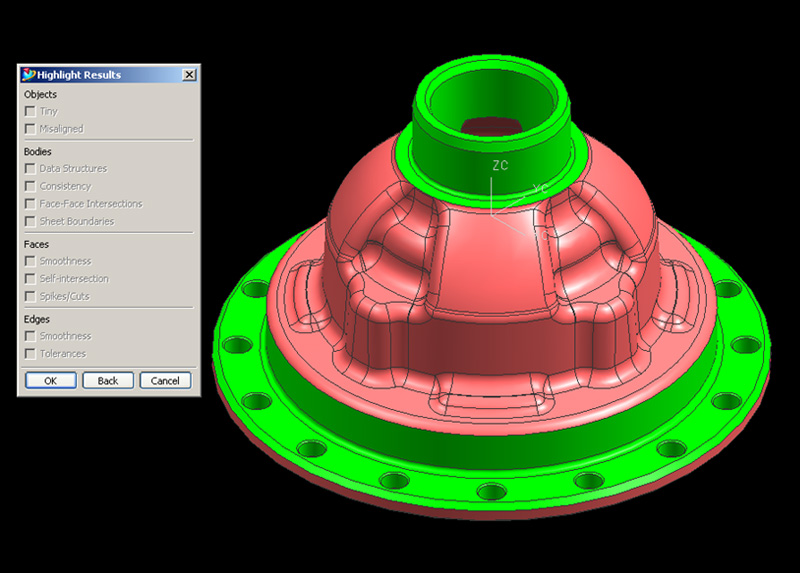

Result of PDQ checking
by UG NX3

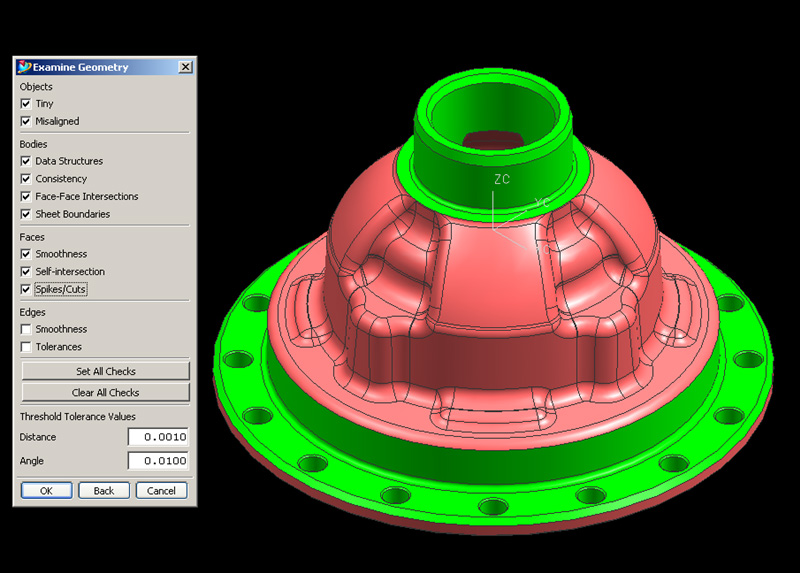

We use command on high-end software for check product data quality.

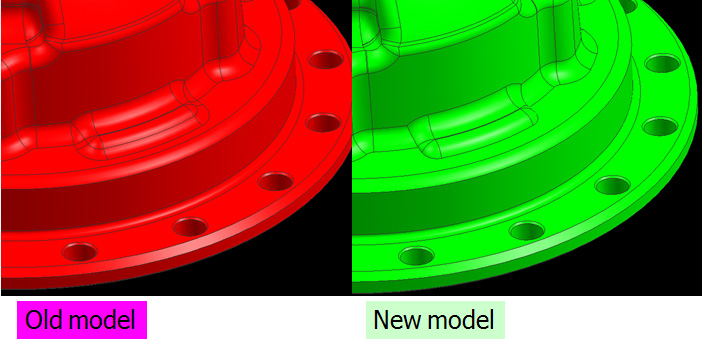

Comparison

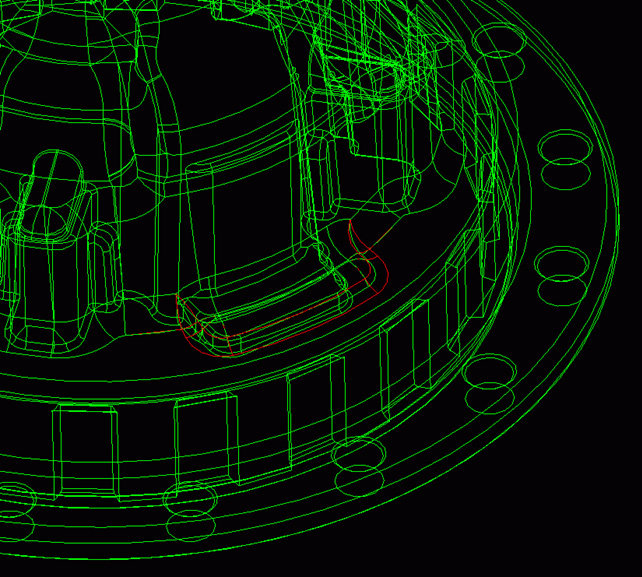

Use compare old model with new model for finding no correct of model.
